Form elements

A form consists of one or multiple pages. The user starts at the first page and can navigate to other pages by pressing a button. Each page itself contains multiple form elements that can be arranged in any way you like.

Standard form elements are always available in Xima® Formcycle. Additionally you may create your own form templates in the  Xima® Formcycle Designer. By installing plugin, you can add additional elements for specialized purposes. Finally, it is also possible to include other elements and widget via third-party JavaScript libraries such as jQuery UI.

The following standard form elements are currently available:

Positioning elements

You can move elements via drag&drop to where you would like to have them.

Create new element by clicking on a form element in the element list to the left. Move the element via drag&drop into the form and to the position where you would like to place them. You can also take an existing element in the form and move it to another position.

Place an element inside another element

Some elements such as containers and fieldsets allow you to group multiple form elements. To move an element inside a container or fieldset, click on the element and drag it over the container or fieldset.

Moving an element without drag&drop

When there are many elements in a form, dragging an element from the top of the form to the bottom may get cumbersome. To make it easier to move element over a longer distance, do a double click on the element. This activates the element move mode and a small orange border appears around each element. Now scroll the form and on the position to which you want to move the form.

In case you do not want to move the element after, press escape or click on the element again to get out of the element move mode.

Form elements can be moved without drag&drop as well. Just do a double click on the element, then click on the desired new position.

Selecting elements

Single selection

Click on an element to select. You can then change its properties in the panel to the right.

To select an element, click on it with the mouse. The element gets highlighted in orange. You can now edit the properties of the selected element in the properties panel to the right.

Multiple selection

Press and hold the shift key to select multiple elements.
  1. Press the shift key and keep holding it down.
  2. Click on the elements you want to select.

All properties the seleected elements have got in common can edited at once in the properties panel to the right. If you change any property, it gets applied to all selected elements.

Selecting parent elements

The navigation bar to the bottom left lets you see all parent elements.

When you select an element, you can see that element and all its parent elements in the navigation bar to the bottom left of the Xima® Formcycle Designer. By clicking on any of those elemnts you can select them as well. This is especially helpful to select elements just as pages or containers.

Copying and deleting elements

Do a right click on an element to open the context menu with various actions.

First, click on an element to select it. Now you can:
Klicken Sie auf ein Element, um es zu markieren.

  • delete the element by pressing delete key (del). This works even if multiple elements are selected.
  • copy the element by pressing ctrl+c and paste it by pressing ctrl+v

Alternatively, you can copy and delete element too by doing a right click on the element and selecting the corresponding action from the context menu.

Transform form elements

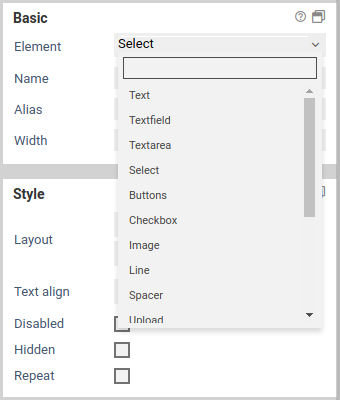

By clicking on the element type selection a searchable list with possible target element types appears.

It is possible to transform existing elements in the form into other element types. While containers and fieldsets can only be transformed into the respective other element type, all other element types can be transformed into any other type, but not into containers and fieldsets.
